Product Description:

Multi-layer foil sampling bags are manufactured from multi-layer laminate film composed of polymer films and aluminum foil.
These multi-layer foil bags are ideally suited for the containment of low molecular weight gases. The 4-layer aluminum film structure delivers excellent gas barrier performance, effectively preventing gas permeation through the bag wall.
Multi-layer foil sampling bags are widely used for the collection of Hydrogen (H₂), Oxygen (O₂), Nitrogen (N₂), Methane (CH₄), Carbon Monoxide (CO), Carbon Dioxide (CO₂), as well as industrial gases, petrochemical gases and ambient air samples.
They feature a continuous operating temperature range of -30°C to 60°C.
The sampling bags are reusable and can be cleaned using pure air or high-purity nitrogen.
Customized solutions are provided to meet specific size and application requirements, with volume options ranging from 0.005 L to 500 L.

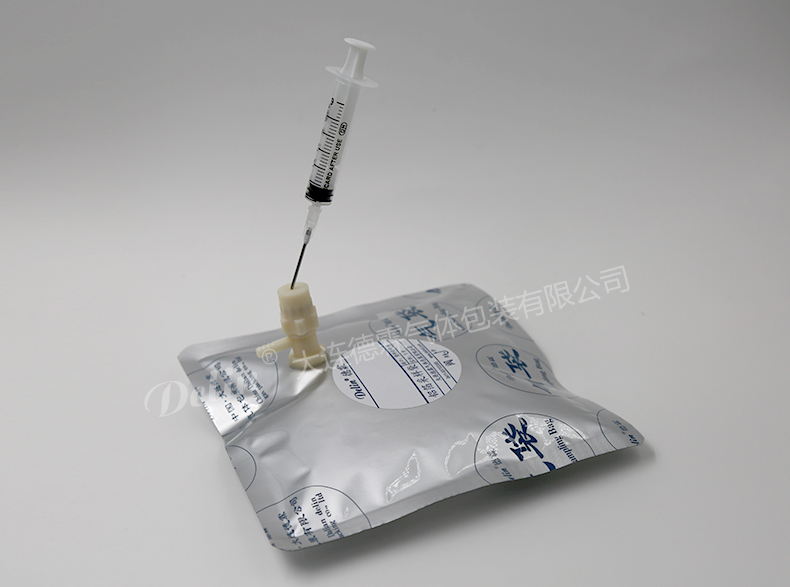

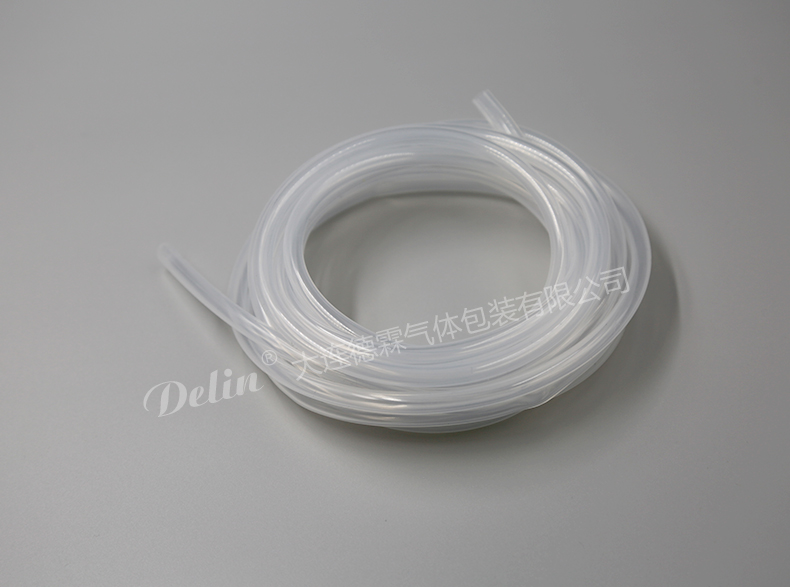

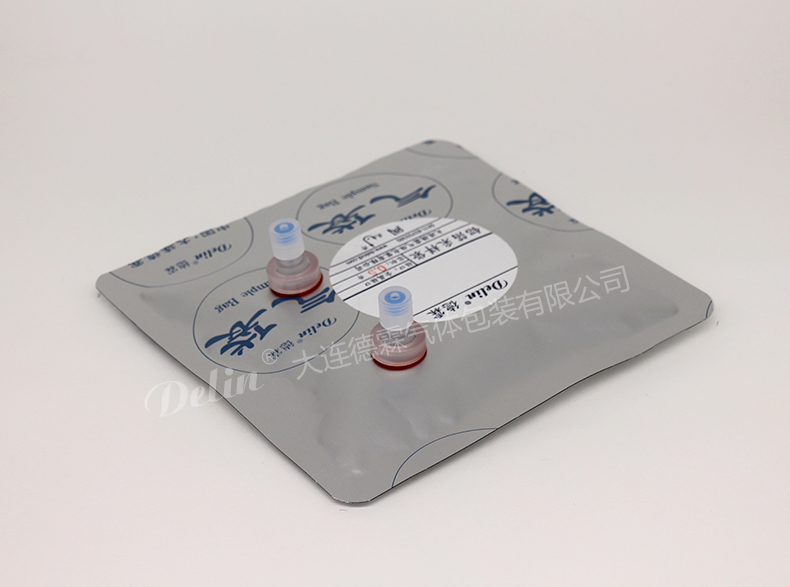

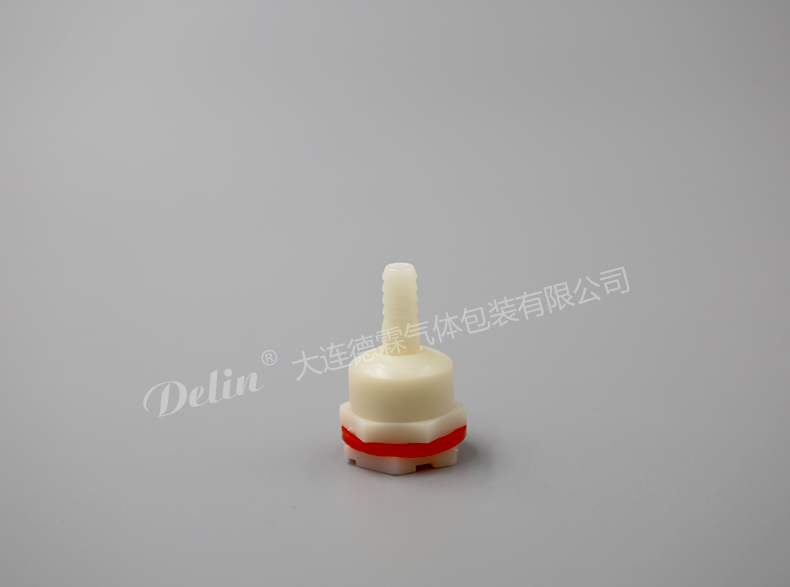

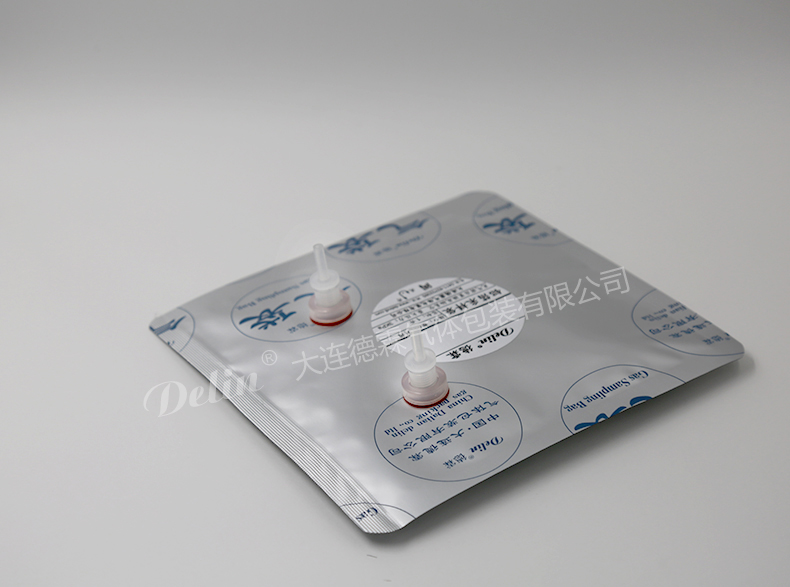

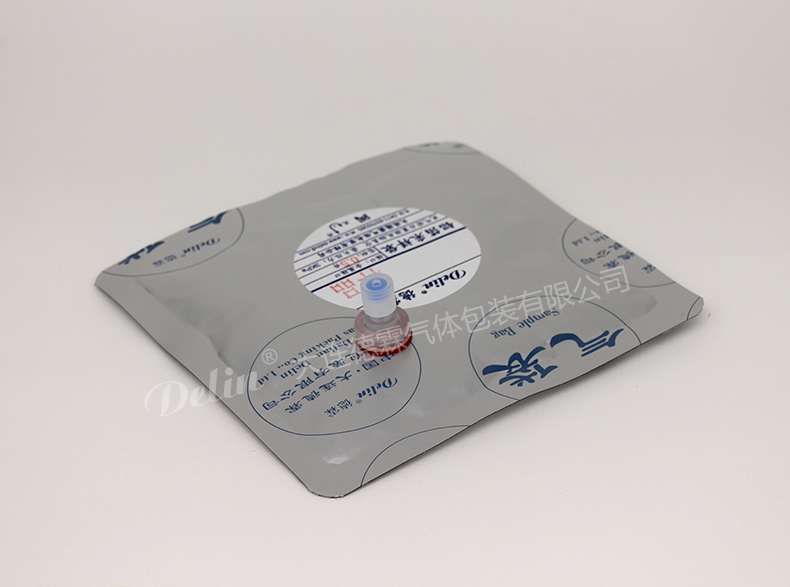

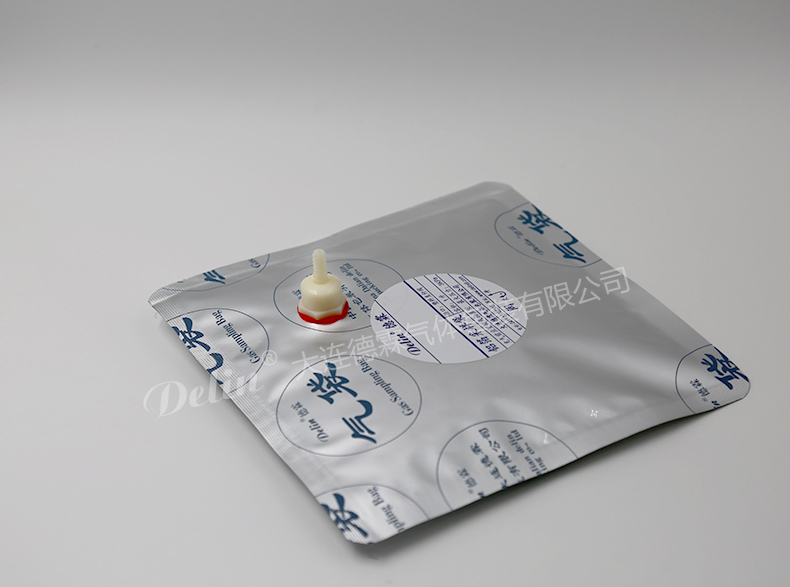

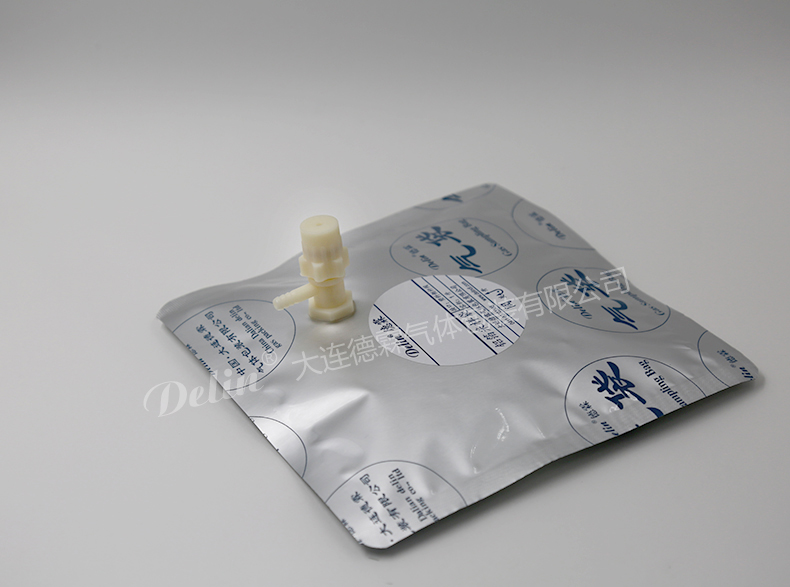

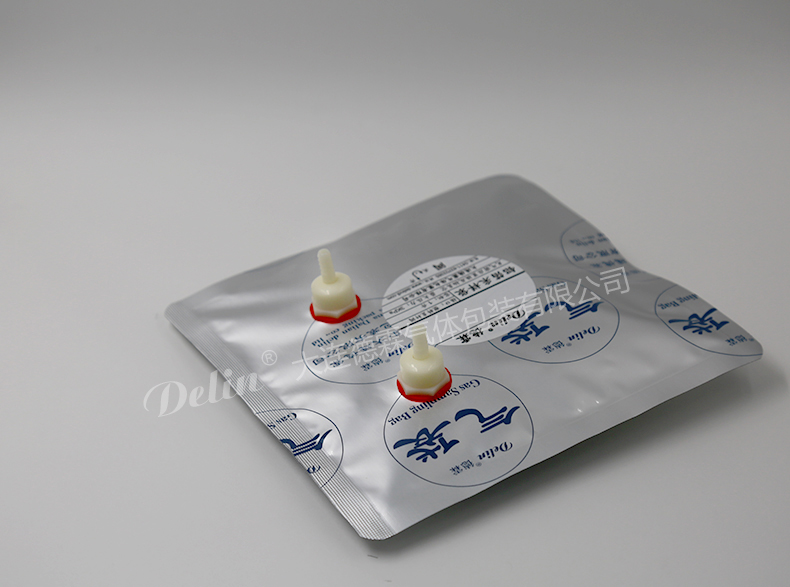

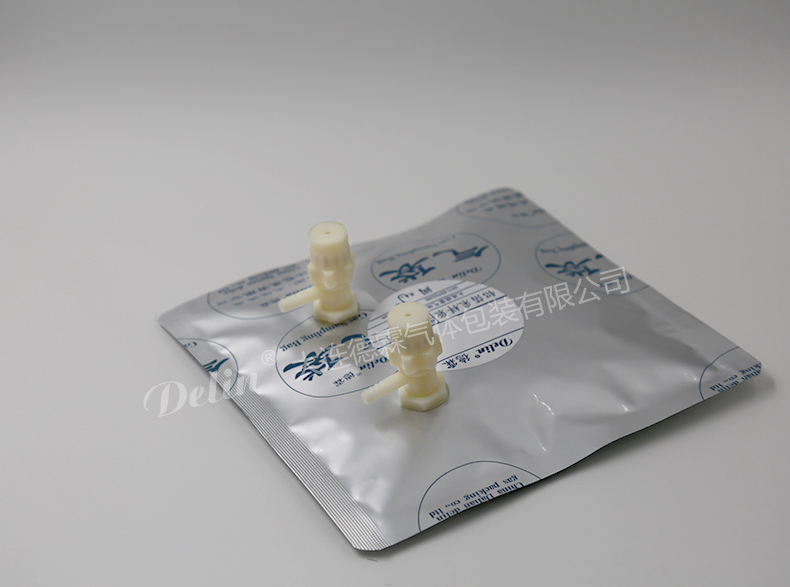

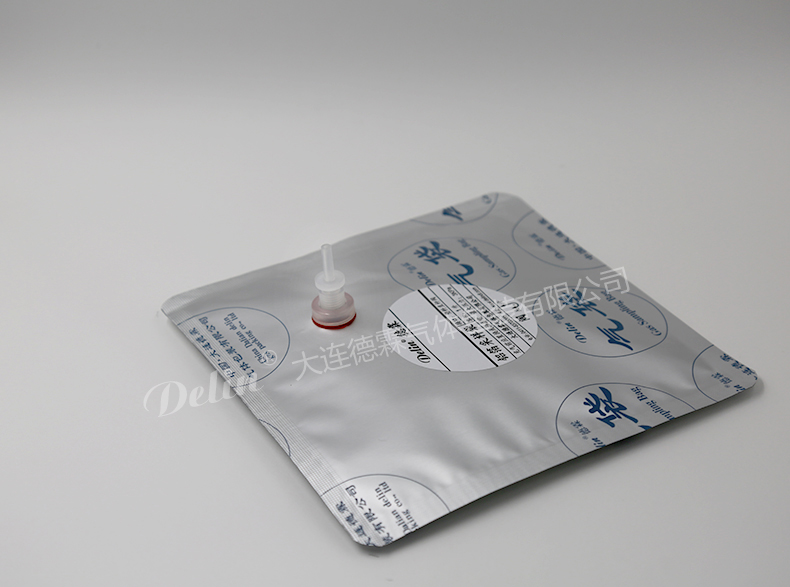

Product Display:

Models and specifications are as follows :

Capacity

(Liter)

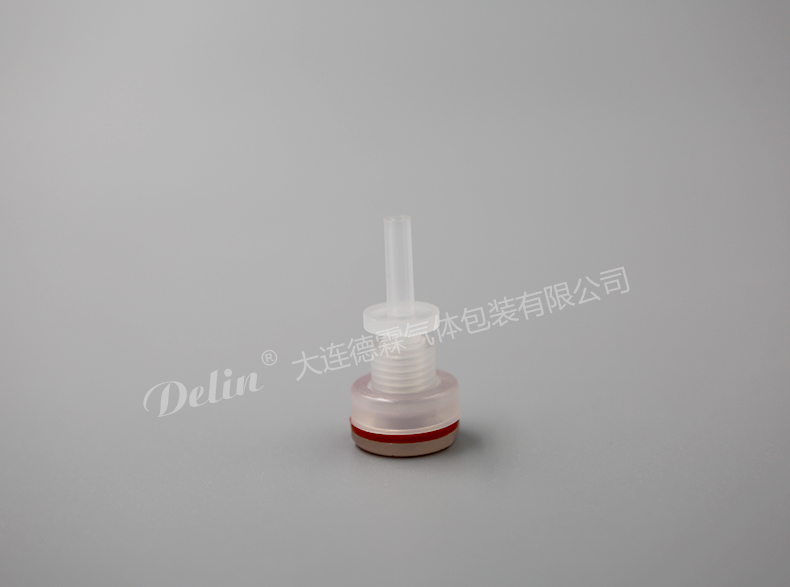

Polypropylene

On/Off Valve (New)

Polypropylene

On/Off Valve (Old)

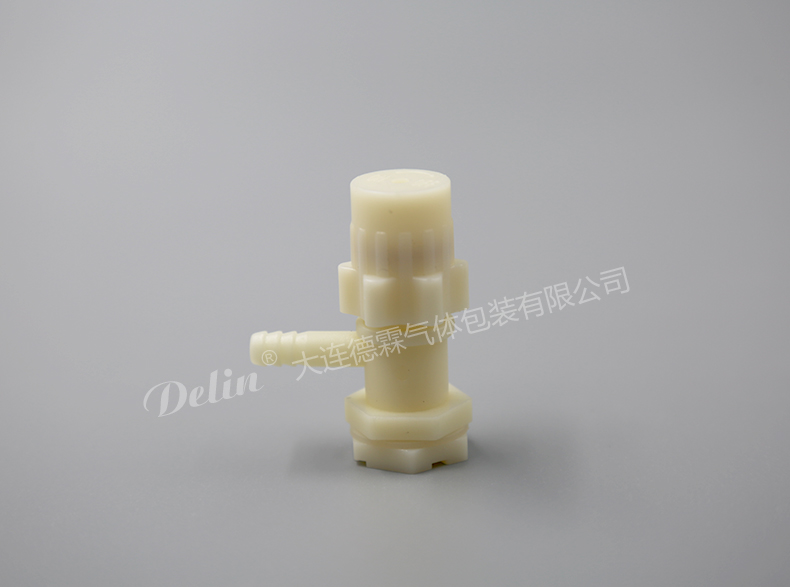

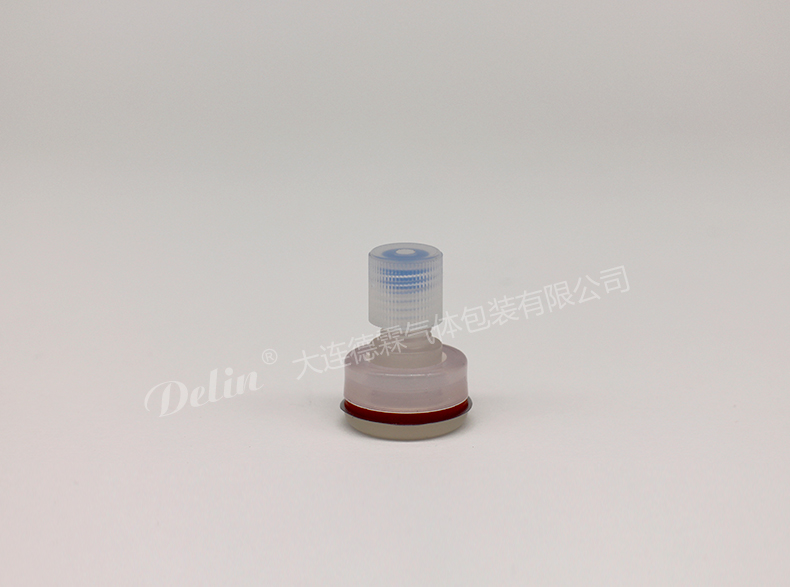

Polypropylene Screw-Cap

Valve (side port)

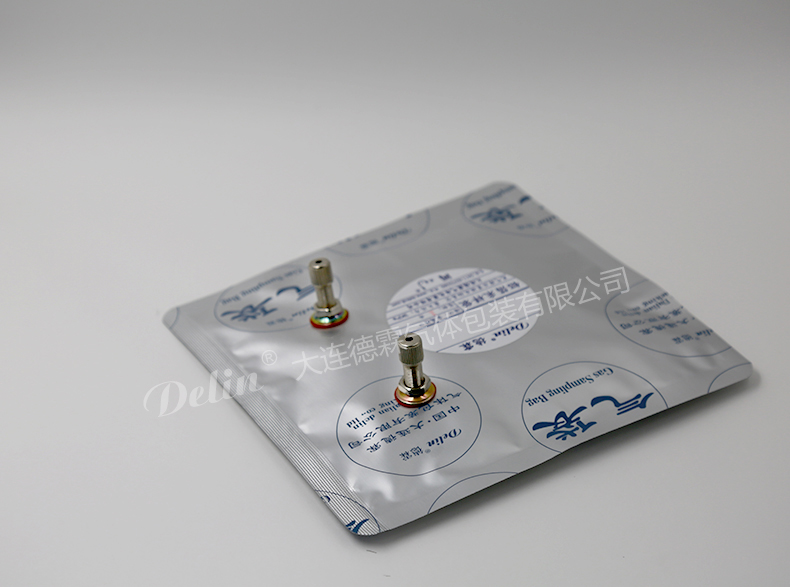

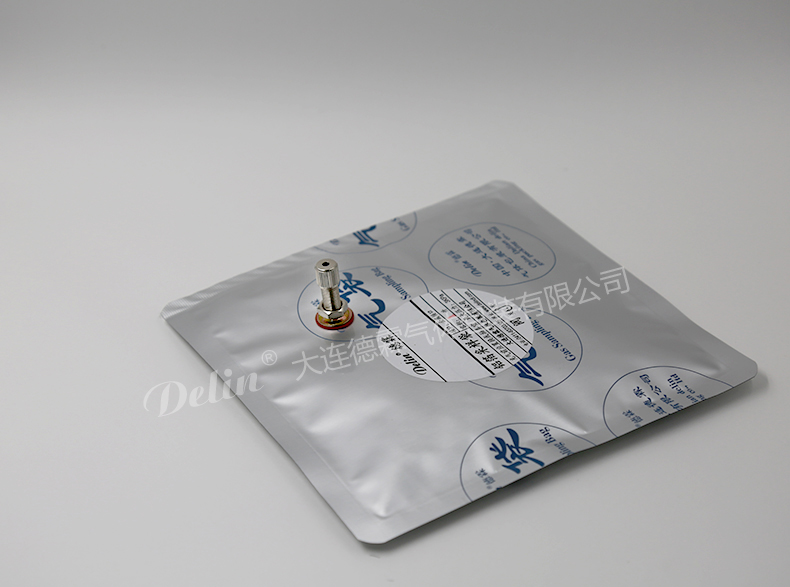

Stainless Steel Fitting

with Septum

Dimension

(cm)


Single Dual Single Dual Single Dual Single Dual
0.02 LB-101-0.02A
LB-101-0.02
LB-201-0.02
LB-301-0.02 LB-302-0.02 8×8
0.05 LB-101-0.05A
LB-101-0.05
LB-201-0.05
LB-301-0.05 LB-302-0.05 10×8.5
0.1 LB-101-0.1A LB-102-0.1A LB-101-0.1 LB-102-0.1 LB-201-0.1 LB-202-0.1 LB-301-0.1 LB-302-0.1 16×10
0.2 LB-101-0.2A LB-102-0.2A LB-101-0.2 LB-102-0.2 LB-201-0.2 LB-202-0.2 LB-301-0.2 LB-302-0.2 16×12
0.3 LB-101-0.3A LB-102-0.3A LB-101-0.3 LB-102-0.3 LB-201-0.3 LB-202-0.3 LB-301-0.3 LB-302-0.3 16×14
0.5 LB-101-0.5A LB-102-0.5A LB-101-0.5 LB-102-0.5 LB-201-0.5 LB-202-0.5 LB-301-0.5 LB-302-0.5 16×16
1 LB-101-1A LB-102-1A LB-101-1 LB-102-1 LB-201-1 LB-202-1 LB-301-1 LB-302-1 19×19
2 LB-101-2A LB-102-2A LB-101-2 LB-102-2 LB-201-2 LB-202-2 LB-301-2 LB-302-2 24×24
3 LB-101-3A LB-102-3A LB-101-3 LB-102-3 LB-201-3 LB-202-3 LB-301-3 LB-302-3 24×28
4 LB-101-4A LB-102-4A LB-101-4 LB-102-4 LB-201-4 LB-202-4 LB-301-4 LB-302-4 28×32
5 LB-101-5A LB-102-5A LB-101-5 LB-102-5 LB-201-5 LB-202-5 LB-301-5 LB-302-5 28×38
8 LB-101-8A LB-102-8A LB-101-8 LB-102-8 LB-201-8 LB-202-8 LB-301-8 LB-302-8 38×32
10 LB-101-10A LB-102-10A LB-101-10 LB-102-10 LB-201-10 LB-202-10 LB-301-10 LB-302-10 38×38
15 LB-101-15A LB-102-15A LB-101-15 LB-102-15 LB-201-15 LB-202-15 LB-301-15 LB-302-15 38×48
20 LB-101-20A LB-102-20A LB-101-20 LB-102-20 LB-201-20 LB-202-20 LB-301-20 LB-302-20 48×48
30 LB-101-30A LB-102-30A LB-101-30 LB-102-30 LB-201-30 LB-202-30 LB-301-30 LB-302-30 48×65
50 LB-101-50A LB-102-50A LB-101-50 LB-102-50 LB-201-50 LB-202-50 LB-301-50 LB-302-50 48×95
100 LB-101-100A LB-102-100A LB-101-100 LB-102-100 LB-201-100 LB-202-100 LB-301-100 LB-302-100 70×100
200 LB-101-200A LB-102-200A LB-101-200 LB-102-200 LB-101-200 LB-102-200 LB-301-200 LB-302-200 100×110
